Shenzhen ZXT LCD Technology Co.,Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | ZXTLCD |
| Model Number : | ZXTLCD-IFP650KIR |
| Certification : | CE/Rohs/FCC |
| Price : | negotiable |
| Payment Terms : | L/C,T/T,MoneyGram,Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 3-5 working days |
The teaching mode tool adopts the three-stage design, the left side is the menu bar, the middle side is the commonly used pen and erase tools in the teaching process, and the right side is the page management tools.
The software support teaching mode and annotation mode, teaching mode support PPT files inserted into the software, insert the original text, pictures, tables and other objects and animation, at the same time can call all tools directly in the software on the PPT, requirements in use annotation, the application is on each page, at the same time can be used by scanning code to share PPT content, annotation mode can be operated under any software.
Pen tools: Provide 6 kinds of pen tools, including pencil, chalk, brush, marker, seal pen, texture pen, etc. Pencil tools can be set as solid line, dotted line, wavy line and other linear, and seal pen can be set with medal shape can be quickly awarded for class rewards.
Channel Settings, support the custom boot channel, support the channel channel name customization. Full channel annotation, support quick setting of writing pen color; annotate multiple pages to preview the annotated page at any time; annotate the page to quickly import the whiteboard software.
System optimization software, provide system overview, application software management, system memory optimization; support the monitoring and alarm of system information, ops computer, touch screen, temperature and screen.
Side shortcut menu, support calendar, timer, magnifying glass, curtain, camera, calculator, spotlight, compass and other small tools application, support custom addition; support browser, whiteboard, welcome template, file management and other system application software and third-party software custom display function common teaching and training meeting function.
A Glimpse into the Future of Education

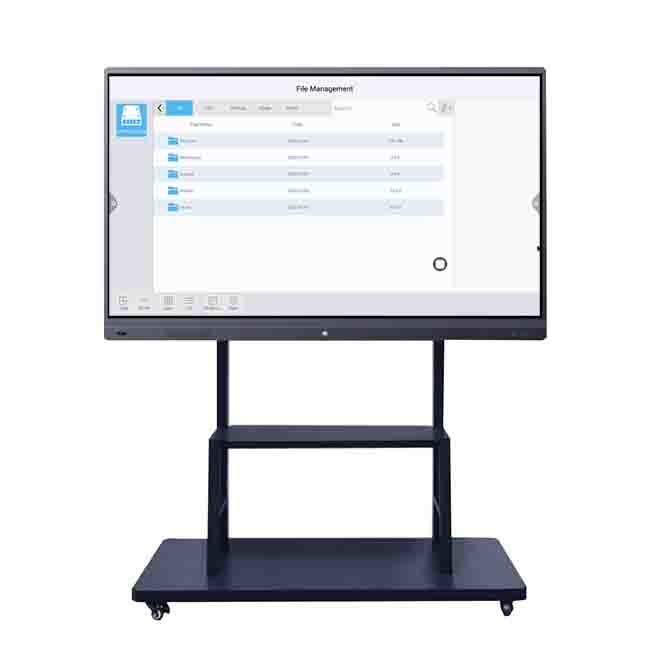

The 65-inch Interactive Smart Blackboard represents a move towards more intelligent and digital educational tools. As technology advances, devices like this will play a crucial role in creating engaging and effective learning environments, making education more accessible for everyone.
In summary, this innovative educational equipment not only enhances the teaching and learning experience but also paves the way for a future where education is enriched by technology.
| name | size | 65" |
| show | Display Area HV (mm) | 1425mm ×803mm |
| optimum resolution | 3840×2160 pixels | |
| Refresh the frequency | 60Hz | |
| luminance | 300-350cd/m2 | |
| contrast ratio | 1200:1 / 5000:1 (OC) | |
| Visual Angle | 1780(H/V) | |
| Show color | 8bit 16.7M/1.07B (10bit) | |
| backlight | DLED | |
| colour gamut ntsc | 72% | |
| life span | For 50,000 hours | |
| surface | Body material | Aluminum alloy face frame, oxidation sandblasting process |
| Front frame color | Black [standard], can be customized silver black or other colors | |
| Front frame glass | Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass | |
| Front box pen slot | The two magnetic grooves on the front | |
| Touch parameters | Identification principle | Infrared recognition |
| Touch embedding mode | Built-in integrated type | |
| The way of writing | Finger, touch pen or other 2mm non-transparent object (full screen writing) | |
| Number of touch points | At 20 o'clock | |
| Touch resolution | 32767*32767 | |
| Touch precision | ±1mm | |
| Single refers to the response speed | ＜8ms | |
| Touch number | The theoretical number is infinite | |
| drivers | System automatic identification, no drive | |
| support system | windowsXP /7/8/10/11,Android,MacOS,Linux | |
| working temperature | -10~+50 ℃ | |
| communication mode | USB 2.0/USB 3.0 | |
| Built-in system | scheme | Amlogic T982 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| basic frequency | 1.9GHz | |
| internal storage | 4G DDR | |
| memory | 32GB (EMMC) | |
| Wi-Fi | 2.4GHz/5GHz | |
| System version | Android 13.0 | |
| Front interface | Enter the port | USB 3.0×3 |
| HDMI×1 | ||
| TOUCH USB×1 | ||
| Type-C×1 | ||
| Prehole position | Auto photosensitive hole 1 | |
| Remote control receives the indicator light 1 | ||
| key | Eight buttons | Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional) |
| The machine interface | Enter the port | RJ45:×1 |
| TOUCH USB:×1 | ||
| USB3.0:×1 | ||
| USB2.0:×1 | ||
| RS232:×1 | ||
| HDMI IN:×1 | ||
| AV IN:×2 | ||
| Other ports | AV OUT :×1 | |
| Earphone:×1 | ||
| SPDIF OUT:×1 | ||
| Complete machine power consumption | The power of the machine | ≤260W |
| OPS power | ≤110W | |
| working voltage | 100~240V AC, 50/60Hz | |
| Standby power consumption | ≤0.5W | |
| Sound channel stereo | 2.0 | |
| Dual-channel power | 20W / 8 Euro 2 speakers | |
| work environment | service temperature | 0~40℃ |
| operation humidity | 10%~90% RH | |
| Storage temperature | -20~60℃ | |
| Store humidity | 10%~90% RH | |
| above sea level | 5000 Meters | |
| Size weight | Standard bare machine size length * width * height (mm) | 1485×108×887 |
| Camera bare machine size: length * width * height (mm) | 1485×108×900 | |
| Overall machine package dimensions length * width * height (mm) | 1600×200×1000 | |
| VESA stent hole position (mm) | 400(V)×500(H) | |
| Wall hanging thickness (mm) | 23mm | |
| net weight | 33KG | |
| rough weight | 41KG | |
| Single outlet wooden box size: length * width * height (mm) | 16702651160 (with base support) | |
| Weight (including wooden box) | 70KG | |
| Standard list | nameplate (neutral) | 1 (affixed on the back of the whole machine) |
| QR code (Neutral) | 1 (at bottom left of front box) | |
| Accessory box (neutral) | ×1 | |
| Power supply line is 1.8M | 1 (98 inches standard with 3 m) | |
| Certificate of qualification (neutral) | ×1 | |
| Warranty Card (Neutral) | ×1 | |
| Remote control (battery-free) | ×1 | |
| Touch pen (magnetic suction) | ×2 | |
| Wall-hanger (neutral) | ×1 | |
| Optional list | HDMI line | ×1 |
| TOUCH USB Line | ×1 | |
| Intelligent page turning pen | ×1 | |
| Wireless screen casting device | ×1 | |
| traversing carriage | ×1 |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
|
|
