Shenzhen ZXT LCD Technology Co.,Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | ZXTLCD |
| Model Number : | ZXTLCD-IFP650KIC |
| Certification : | CE/Rohs/FCC |
| Price : | negotiable |
| Payment Terms : | L/C,T/T,MoneyGram,Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 3-5 working days |

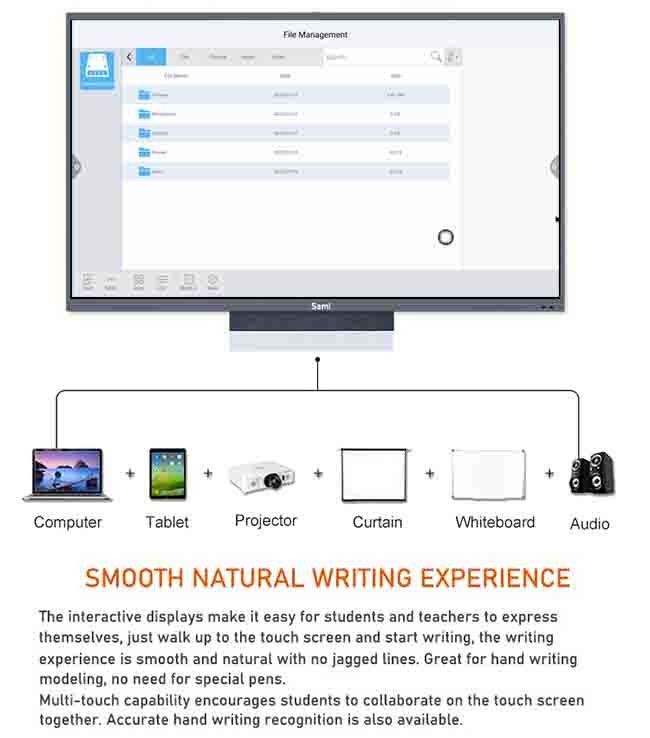

Full channel annotation, support quick setting of writing pen color; annotate multiple pages, can preview the annotated page at any time; annotate the page to quickly import the whiteboard software.Support the centralized control of this machine, and operate the volume, channel, sound, signal source and other functions through the external equipment.Built-in mobile phone screen projection software, which can conduct multi-screen interaction, support 4 ios, android, pc, mac and other devices random screen projection.comprehensive safety lock function, provide U disk lock, screen lock, application software lock, touch lock.
It can be unlocked by remote control button, combination button, input password and U disk.The TV remote control function supports the F1- -F12 function keys and Alt + F4 functions commonly used in the analog computer keyboard.support the on-screen pull menu, and can be switched according to user needs.centralized control, through the external equipment for the whole machine volume, channel, sound, signal source and other functional operation.Provide up to more than 12 language choices, and support the system interface, setting interface, application software, etc., the whole system multi-language follow the system language switch.Wired and wireless network Settings, support the online network upgrade, support the system running time display function, can be viewed at any time.
Support the search setting function (setting the menu, support the function options in the search system).Android whiteboard, support single point and multi-point writing switching, gesture polishing, zoom and roaming, email sending, insert form; scan code sharing, support local and network selection function, and support current page and all pages; support the operation, sizeand different colors and thickness; support the original handwriting writing function; support documents, PDF, and JPG.file management software, support multiple systems, U disk and other equipment documents for automatic classification, viewing, editing and other operations.
| name | size | 65" |
| show | Display Area HV (mm) | 1425mm ×803mm |
| optimum resolution | 3840×2160 pixels | |
| Refresh the frequency | 60Hz | |
| luminance | 300-350cd/m2 | |
| contrast ratio | 1200:1 / 5000:1 (OC) | |
| Visual Angle | 1780(H/V) | |
| Show color | 8bit 16.7M/1.07B (10bit) | |
| backlight | DLED | |
| colour gamut ntsc | 72% | |
| life span | For 50,000 hours | |
| surface | Body material | Aluminum alloy face frame, oxidation sandblasting process |
| Front frame color | Black [standard], can be customized silver black or other colors | |
| Front frame glass | Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass | |
| Front box pen slot | The two magnetic grooves on the front | |
| Touch parameters | Identification principle | Infrared recognition |
| Touch embedding mode | Built-in integrated type | |
| The way of writing | Finger, touch pen or other 2mm non-transparent object (full screen writing) | |
| Number of touch points | At 20 o'clock | |
| Touch resolution | 32767*32767 | |
| Touch precision | ±1mm | |
| Single refers to the response speed | ＜8ms | |
| Touch number | The theoretical number is infinite | |
| drivers | System automatic identification, no drive | |
| support system | windowsXP /7/8/10/11,Android,MacOS,Linux | |
| working temperature | -10~+50 ℃ | |
| communication mode | USB 2.0/USB 3.0 | |
| Built-in system | scheme | Amlogic T982 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| basic frequency | 1.9GHz | |
| internal storage | 4G DDR | |
| memory | 32GB (EMMC) | |
| Wi-Fi | 2.4GHz/5GHz | |
| System version | Android 13.0 | |
| Front interface | Enter the port | USB 3.0×3 |
| HDMI×1 | ||
| TOUCH USB×1 | ||
| Type-C×1 | ||
| Prehole position | Auto photosensitive hole 1 | |
| Remote control receives the indicator light 1 | ||
| key | Eight buttons | Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional) |
| The machine interface | Enter the port | RJ45:×1 |
| TOUCH USB:×1 | ||
| USB3.0:×1 | ||
| USB2.0:×1 | ||
| RS232:×1 | ||
| HDMI IN:×1 | ||
| AV IN:×2 | ||
| Other ports | AV OUT :×1 | |
| Earphone:×1 | ||
| SPDIF OUT:×1 | ||
| Complete machine power consumption | The power of the machine | ≤260W |
| OPS power | ≤110W | |
| working voltage | 100~240V AC, 50/60Hz | |
| Standby power consumption | ≤0.5W | |
| Sound channel stereo | 2.0 | |
| Dual-channel power | 20W / 8 Euro 2 speakers | |
| Built In camera | Built-in 48 million camera, 8 array microphones | |
| work environment | service temperature | 0~40℃ |
| operation humidity | 10%~90% RH | |
| Storage temperature | -20~60℃ | |
| Store humidity | 10%~90% RH | |
| above sea level | 5000 Meters | |
| Size weight | Standard bare machine size length * width * height (mm) | 1485×108×887 |
| Camera bare machine size: length * width * height (mm) | 1485×108×900 | |
| Overall machine package dimensions length * width * height (mm) | 1600×200×1000 | |
| VESA stent hole position (mm) | 400(V)×500(H) | |
| Wall hanging thickness (mm) | 23mm | |
| net weight | 33KG | |
| rough weight | 41KG | |
| Single outlet wooden box size: length * width * height (mm) | 16702651160 (with base support) | |
| Weight (including wooden box) | 70KG | |
| Standard list | nameplate (neutral) | 1 (affixed on the back of the whole machine) |
| QR code (Neutral) | 1 (at bottom left of front box) | |
| Accessory box (neutral) | ×1 | |
| Power supply line is 1.8M | 1 (98 inches standard with 3 m) | |
| Certificate of qualification (neutral) | ×1 | |
| Warranty Card (Neutral) | ×1 | |
| Remote control (battery-free) | ×1 | |
| Touch pen (magnetic suction) | ×2 | |
| Wall-hanger (neutral) | ×1 | |
| Optional list | HDMI line | ×1 |
| TOUCH USB Line | ×1 | |
| Intelligent page turning pen | ×1 | |
| Wireless screen casting device | ×1 | |
| traversing carriage | ×1 | |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
|
|
