| Brand Name : | ZXTLCD |
| Model Number : | ZXTLCD-IFP850KIC |
| Certification : | CE/Rohs/FCC |
| Price : | negotiable |
| Payment Terms : | L/C,T/T,MoneyGram,Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 3-5 working days |
Multi-theme system theme, provide conference, education, science and technology, welcome template, enterprise, government, medical, education, advertising and other more than ten industry template applications, support multi-person sign-in, save, scan code sharing.
It can monitor the temperature value of the whole machine in real time, and the temperature can be displayed on the Android home page, prompting different colors. Automatic close the whole machine when the temperature of the whole machine is too high.
Adaptive ambient light function, which supports adjusting the screen brightness according to the ambient light, and the system supports the anti-blue light eye protection mode to protect the user's eyes.

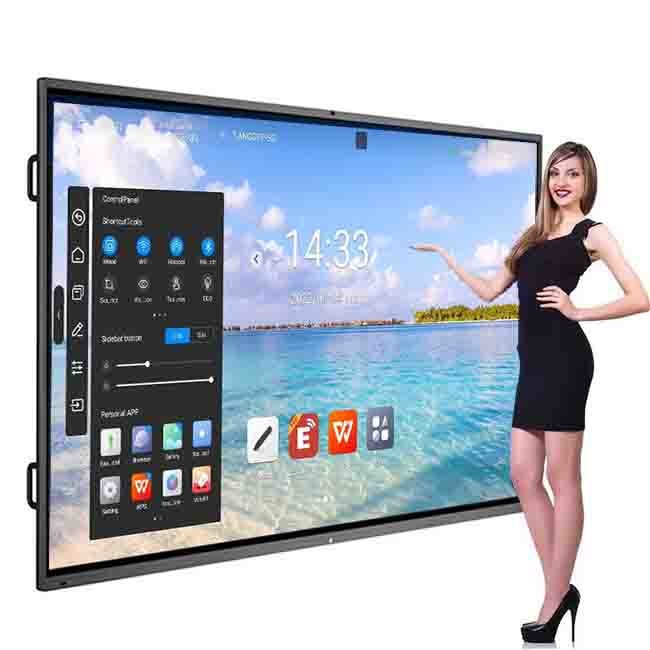

Interactive smart digital blackboard, IFP 86-inch screen touch blackboard is a smart interactive flat panel which is integrated with the functions of digital screen and touch screen, which is a new type of teaching tool for teachers and students. This blackboard not only has large size screen but it also has multi touch functionality which makes the teaching process more effective and engaging.
First of all, the interactive intelligent digital blackboard offers a large number of teaching materials. By means of Blackboard connected to the Internet, teachers are able to download and transmit teaching material, applications for education, etc. and thus teach online in real time.
It can monitor the temperature value of the whole machine in real time, and the temperature can be displayed on the Android home page, with different colors. Therefore, and the whole machine can be automatically closed when the temperature of the whole machine is too high.
| name | size | 85" |
| show | Display Area HV (mm) | 1874mm ×1057mm |
| optimum resolution | 3840×2160 pixels | |
| Refresh the frequency | 60Hz | |
| luminance | 300-350cd/m2 | |
| contrast ratio | 1200:1 / 5000:1 (OC) | |
| Visual Angle | 1780(H/V) | |
| Show color | 8bit 16.7M/1.07B (10bit) | |
| backlight | DLED | |
| colour gamut ntsc | 72% | |
| life span | For 50,000 hours | |
| surface | Body material | Aluminum alloy face frame, oxidation sandblasting process |
| Front frame color | Black [standard], can be customized silver black or other colors | |
| Front frame glass | Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass | |
| Front box pen slot | The two magnetic grooves on the front | |
| Touch parameters | Identification principle | Infrared recognition |
| Touch embedding mode | Built-in integrated type | |
| The way of writing | Finger, touch pen or other 2mm non-transparent object (full screen writing) | |
| Number of touch points | At 20 o'clock | |
| Touch resolution | 32767*32767 | |
| Touch precision | ±1mm | |
| Single refers to the response speed | ＜8ms | |
| Touch number | The theoretical number is infinite | |
| drivers | System automatic identification, no drive | |
| support system | windowsXP /7/8/10/11,Android,MacOS,Linux | |
| working temperature | -10~+50 ℃ | |
| communication mode | USB 2.0/USB 3.0 | |
| Built-in system | scheme | Amlogic T982 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| basic frequency | 1.9GHz | |
| internal storage | 4G DDR | |
| memory | 32GB (EMMC) | |
| Wi-Fi | 2.4GHz/5GHz | |
| System version | Android 13.0 | |
| Front interface | Enter the port | USB 3.0×3 |
| HDMI×1 | ||
| TOUCH USB×1 | ||
| Type-C×1 | ||
| Prehole position | Auto photosensitive hole 1 | |
| Remote control receives the indicator light 1 | ||
| key | Eight buttons | Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional) |
| The machine interface | Enter the port | RJ45:×1 |
| TOUCH USB:×1 | ||
| USB3.0:×1 | ||
| USB2.0:×1 | ||
| RS232:×1 | ||
| HDMI IN:×1 | ||
| AV IN:×2 | ||
| Other ports | AV OUT :×1 | |
| Earphone:×1 | ||
| SPDIF OUT:×1 | ||
| Complete machine power consumption | The power of the machine | ≤400W |
| OPS power | ≤110W | |
| working voltage | 100~240V AC, 50/60Hz | |
| Standby power consumption | ≤0.5W | |
| Sound channel stereo | 2.0 | |
| Dual-channel power | 20W / 8 Euro 2 speakers | |
| Built In camera | Built-in 48 million camera, 8 array microphones | |
| work environment | service temperature | 0~40℃ |
| operation humidity | 10%~90% RH | |
| Storage temperature | -20~60℃ | |
| Store humidity | 10%~90% RH | |
| above sea level | 5000 Meters | |
| Size weight | Standard bare machine size length * width * height (mm) | 1953×108×1151 |
| Camera bare machine size: length * width * height (mm) | 1953×108×1164 | |
| Overall machine package dimensions length * width * height (mm) | 2100×215×1300 | |
| VESA stent hole position (mm) | 400(V)×800(H) | |
| Wall hanging thickness (mm) | 36mm | |
| net weight | 59KG | |
| rough weight | 75KG | |
| Single outlet wooden box size: length * width * height (mm) | 2270×275×1460 (With bottom support) | |
| Weight (including wooden box) | 110KG | |
| Standard list | nameplate (neutral) | 1 (affixed on the back of the whole machine) |
| QR code (Neutral) | 1 (at bottom left of front box) | |
| Accessory box (neutral) | ×1 | |
| Power supply line is 1.8M | 1 (98 inches standard with 3 m) | |
| Certificate of qualification (neutral) | ×1 | |
| Warranty Card (Neutral) | ×1 | |
| Remote control (battery-free) | ×1 | |
| Touch pen (magnetic suction) | ×2 | |
| Wall-hanger (neutral) | ×1 | |
| Optional list | HDMI line | ×1 |
| TOUCH USB Line | ×1 | |
| Intelligent page turning pen | ×1 | |
| Wireless screen casting device | ×1 | |
| traversing carriage | ×1 | |
