Shenzhen ZXT LCD Technology Co.,Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | ZXTLCD |
| Model Number : | ZXTLCD-IFP860NIC |
| Certification : | CE/Rohs/FCC |
| Price : | negotiable |
| Payment Terms : | L/C,T/T,MoneyGram,Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 3-5 working days |
Multi-theme system theme, provide conference, education, science and technology, welcome template, enterprise, government, medical, education, advertising and other more than ten industry template applications, support multi-person sign-in, save, scan code sharing.
Multi-screen interaction, support 4 ios, android, pc, mac and other devices random screen.
Intelligent channel identification, automatically jump after inserting the signal source, and prompt the inquiry dialog box.
Comprehensive safety lock function, provide U disk lock, screen lock, application software lock, touch lock.
Managing technology across multiple rooms or locations can feel overwhelming, but these interactive displays make it easy. Picture this: with just a few clicks, you can update settings, push content, or monitor usage for all the displays in your organization. Whether you’re running a school, office, or conference center, these remote management tools ensure everything stays under control without the hassle of walking from room to room.
The displays also integrate seamlessly with other systems, like room booking platforms, to make daily workflows smoother. Imagine walking into a room where the display already knows the schedule for the day. Teachers can start their lessons instantly, and meeting hosts can dive straight into their agenda without fumbling with setup. Everything works together, saving time and reducing unnecessary stress for everyone involved.
What makes these displays truly special is their adaptability. They’re designed to grow with your organization, with regular updates to keep them ahead of the curve. Plus, they’re secure, so you don’t have to worry about protecting sensitive information. From simplifying day-to-day tasks to ensuring seamless integration with your existing tools, these displays make modern collaboration not just possible—but effortless.
| name | size | 86" |
| show | Display Area HV (mm) | 1895mm ×1066mm |
| optimum resolution | 3840×2160 pixels | |
| Refresh the frequency | 60Hz | |
| luminance | 300-350cd/m2 | |
| contrast ratio | 1200:1 / 5000:1 (OC) | |
| Visual Angle | 1780(H/V) | |
| Show color | 8bit 16.7M/1.07B (10bit) | |
| backlight | DLED | |
| colour gamut ntsc | 72% | |
| life span | For 50,000 hours | |
| surface | Body material | Aluminum alloy face frame, oxidation sandblasting process |
| Front frame color | Black [standard], can be customized silver black or other colors | |
| Front frame glass | Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass | |
| Front box pen slot | The two magnetic grooves on the front | |
| Touch parameters | Identification principle | Infrared recognition |
| Touch embedding mode | Built-in integrated type | |
| The way of writing | Finger, touch pen or other 2mm non-transparent object (full screen writing) | |
| Number of touch points | At 20 o'clock | |
| Touch resolution | 32767*32767 | |
| Touch precision | ±1mm | |
| Single refers to the response speed | ＜8ms | |
| Touch number | The theoretical number is infinite | |
| drivers | System automatic identification, no drive | |
| support system | windowsXP /7/8/10/11,Android,MacOS,Linux | |
| working temperature | -10~+50 ℃ | |
| communication mode | USB 2.0/USB 3.0 | |
| Built-in system | scheme | Amlogic T982 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| basic frequency | 1.9GHz | |
| internal storage | 4G DDR | |
| memory | 32GB (EMMC) | |
| Wi-Fi | 2.4GHz/5GHz | |
| System version | Android 13.0 | |

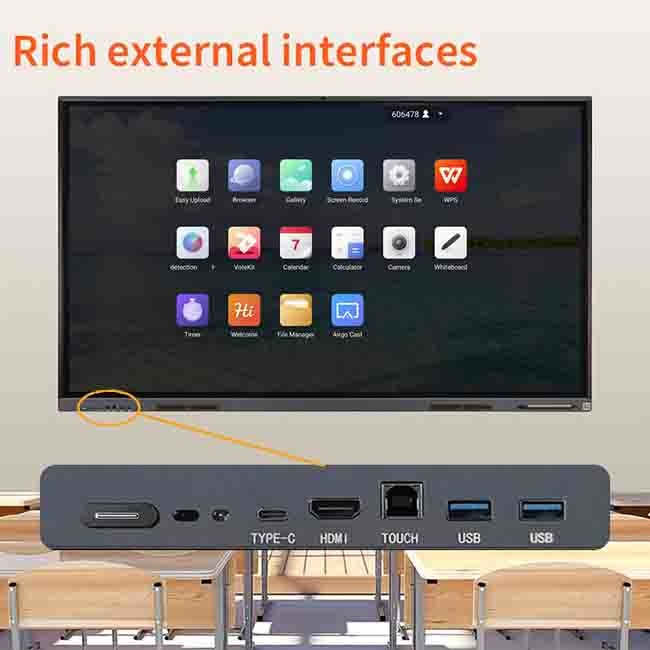

| Front interface | Enter the port | USB 3.0×3 |
| HDMI×1 | ||
| TOUCH USB×1 | ||
| Type-C×1 | ||
| Prehole position | Auto photosensitive hole 1 | |
| Remote control receives the indicator light 1 | ||
| key | Eight buttons | Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional) |
| The machine interface | Enter the port | RJ45:×1 |
| TOUCH USB:×1 | ||
| USB3.0:×1 | ||
| USB2.0:×1 | ||
| RS232:×1 | ||
| HDMI IN:×1 | ||
| AV IN:×2 | ||
| Other ports | AV OUT :×1 | |
| Earphone:×1 | ||
| SPDIF OUT:×1 | ||
| Complete machine power consumption | The power of the machine | ≤400W |
| OPS power | ≤110W | |
| working voltage | 100~240V AC, 50/60Hz | |
| Standby power consumption | ≤0.5W | |
| Sound channel stereo | 2.0 | |
| Dual-channel power | 20W / 8 Euro 2 speakers | |
| Built In camera | Built-in 48 million camera, 8 array microphones | |
| work environment | service temperature | 0~40℃ |
| operation humidity | 10%~90% RH | |
| Storage temperature | -20~60℃ | |
| Store humidity | 10%~90% RH | |
| above sea level | 5000 Meters | |
| Size weight | Standard bare machine size length * width * height (mm) | 1953×108×1151 |
| Camera bare machine size: length * width * height (mm) | 1953×108×1164 | |
| Overall machine package dimensions length * width * height (mm) | 2100×215×1300 | |
| VESA stent hole position (mm) | 400(V)×800(H) | |
| Wall hanging thickness (mm) | 36mm | |
| net weight | 60KG | |
| rough weight | 76KG | |
| Single outlet wooden box size: length * width * height (mm) | 2270×275×1460 (With bottom support) | |
| Weight (including wooden box) | 110KG | |
| Standard list | nameplate (neutral) | 1 (affixed on the back of the whole machine) |
| QR code (Neutral) | 1 (at bottom left of front box) | |
| Accessory box (neutral) | ×1 | |
| Power supply line is 1.8M | 1 (98 inches standard with 3 m) | |
| Certificate of qualification (neutral) | ×1 | |
| Warranty Card (Neutral) | ×1 | |
| Remote control (battery-free) | ×1 | |
| Touch pen (magnetic suction) | ×2 | |
| Wall-hanger (neutral) | ×1 | |
| Optional list | HDMI line | ×1 |
| TOUCH USB Line | ×1 | |
| Intelligent page turning pen | ×1 | |
| Wireless screen casting device | ×1 | |

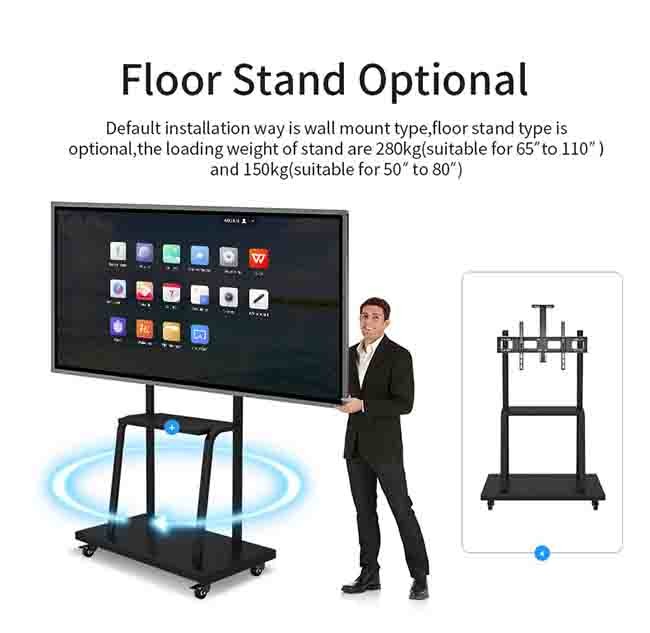

| traversing carriage | ×1 | |
