Shenzhen ZXT LCD Technology Co.,Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | ZXTLCD |
| Model Number : | ZXTLCD-SOK034 |
| Certification : | CE/Rohs/FCC |
| Price : | negotiable |
| Payment Terms : | L/C,T/T,MoneyGram,Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 3-5 working days |

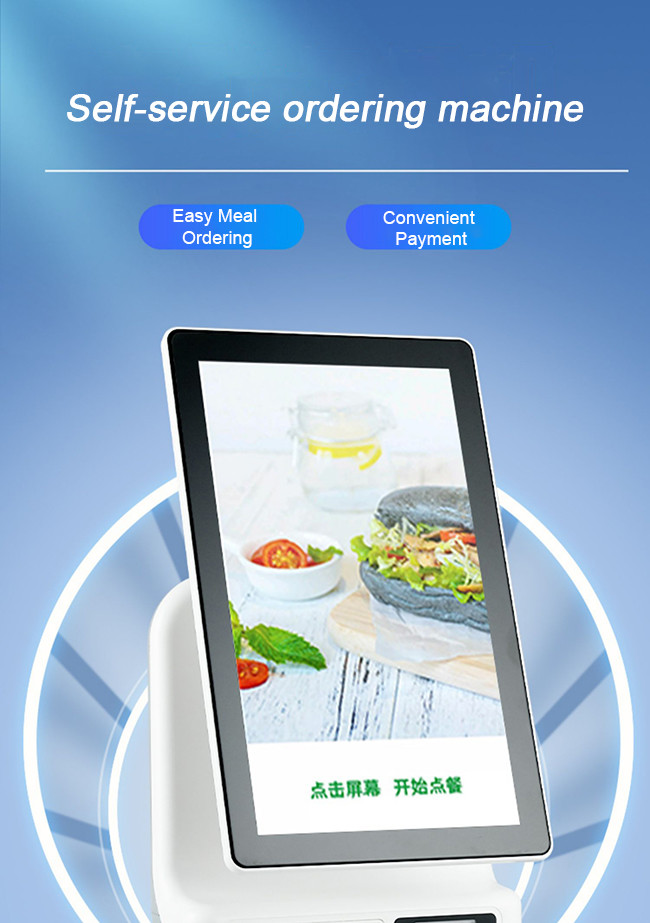

The Ergonomic Self-Ordering Kiosk is designed with accessibility in
mind, featuring an adjustable height mechanism to accommodate users
of all ages and abilities. Its ergonomic design ensures a
comfortable user experience, while the high-resolution display and
responsive touch interface make ordering effortless.
The kiosk supports multi-language options and customizable
software, making it ideal for diverse customer bases. With its
durable construction and energy-efficient operation, this kiosk is
perfect for public spaces, hospitals, and family-friendly venues.
Ergonomic touchscreen display；Adjustable height for accessibility；High-resolution display for clear visuals；Responsive touch interface for easy navigation；Multi-language support for diverse users；Customizable software for branding and promotions；Durable construction for long-lasting performance；Energy-efficient operation
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
Ideal for public spaces, hospitals, family-friendly venues, and accessible environments.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
|
|
